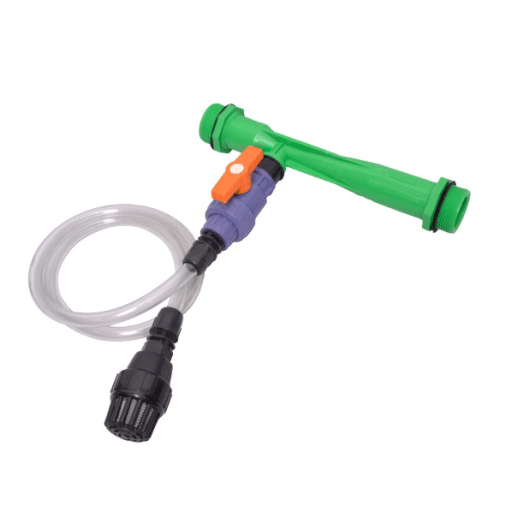

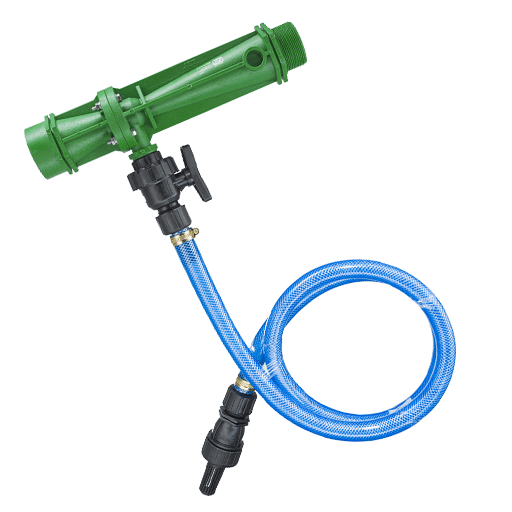

Ventury Injector

A venturi injector, also known as a venturi fertilizer injector or venturi suction device, is a device used in irrigation systems to introduce fertilizers, chemicals or other liquid additives into the water flow. It utilizes the principle of a venturi effect to create a pressure differential that draws the additive into the irrigation system.

Features and Benefits

1. PP Ball Valve

Single union PP ball valve for smooth adjustment of pressure differential between venturi injector

2. Manifold Details

Fertigation Manifold for Ventury Injector installation available in 2”,  2½” & 3” sizes. With single union PP ball valve for smooth  adjustment of pressure differential between Venturi Injector, it saves  energy and manpower

Complete assembly of manifold with options of threaded and fusion welding.

2” manifold with option of 2” venturi injector installation

2½” & 3” manifold with options of ¾” & 2” venturi injector install as per requirement.

2½” & 3” manifold with ¼” female threaded option for pressure gauge installation.

3. Available Size

Size available in 2” -HT-164MTBVPPN — 3”-HT-166MTBVPPN

Categories: ,

Avyaan Venturi injectors provide a convenient and efficient method of introducing additives into an irrigation system. They offer precise control over the injection rate and allow for the uniform distribution of additives throughout the irrigation water, promoting better plant nutrition and crop health.

Available Sizes and Variations

Size Inlet Pressure Motive Flow L/H Water Suction L/H
3/4” 1 – 2 kg / cm² 1355 111
1” 1 – 2 kg / cm² 4290 219
1.5” 1 – 2 kg / cm² 6590 650
2” 1 – 2 kg / cm² 6590 670
