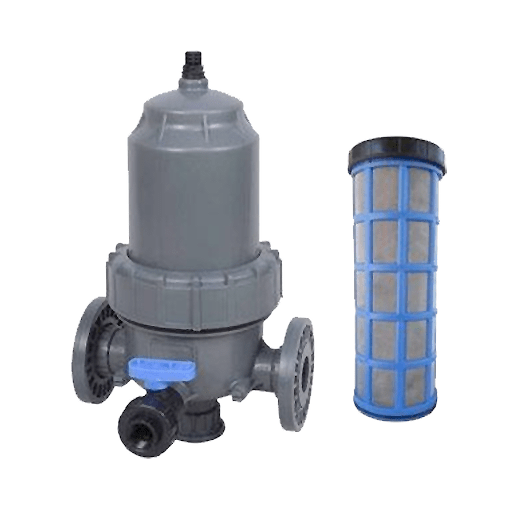

An irrigation screen filter is a device used in irrigation systems to remove solid particles, such as sand, sediment, debris and organic matter, from the water before it reaches the irrigation system. The filter helps prevent clogging and damage to irrigation components like sprinklers, emitters and nozzles.
By incorporating an irrigation screen filter into an irrigation system, farmers and gardeners can help ensure the longevity and efficiency of their irrigation equipment. The filter removes solid particles, allowing clean water to flow through and reducing the risk of clogs and system malfunctions.
Specially blended Glass filled poly propylene material for higher strength and longevity of the filter.
Unique designed vacuum breaker avoids vacuum formation.
More filtration area-Effective filtration, long interval period between cleaning, less pressure drop.
Specially designed supports for the screen to operate at higher pressures.
Radial sealing makes the joint more leak proof at higher pressures.
Union nut with specially designed threads makes the top and bottom pieces of the joint more rigid to resist higher pressures.
| Specifications : | |||
| Model | SF25-50NB | SF35-65NB | SF45-80NB |
| Max.Working Pressure | 6 kg/cm2 | 6 kg/cm2 | 6 kg/cm2 |
| Nominal Flow Rate | 25 m3/hr | 35 m3/hr | 45 m3/hr |
| Range of Folwrate | 20-30 m3/hr | 28-42 3/hr | 40-50 3/hr |
| Filteration Surface area | 513 cm2 | 513 cm2 | 786 cm2 |
| Inlet/Outlet Connection | 2″ BSP | 2.5″ BSP | 3″ BSP |
Sizes Available: 2″ (20-30 m3/hr), 21/2″ (28-42 m3/hr), 3″ (40-50 m3/hr).
A screen filter is a type of filter using a rigid or flexible screen to separate sand and other fine particles out of water for irrigate.
| Inlet / Outlet | Max. Working Pressure | Range of Flow | Filtration Surface Area |
|---|---|---|---|
| 2” | 8 Kg / cm² | 20 m³ / hr | 492 cm² |
| 2.5” | 8 Kg / cm² | 30 m³ / hr | 492 cm² |
| 3” | 8 Kg / cm² | 40 m³ / hr | 1193 cm² |
