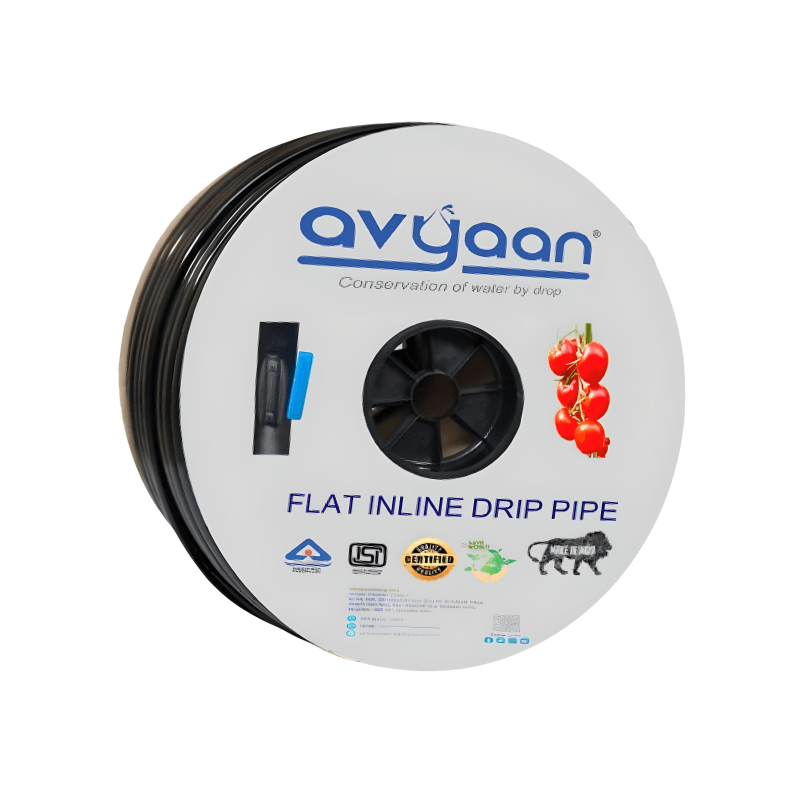

Flat Emitting Pipe (Integral Drip Line)
Flat Emitting Pipe (Integral Drip Line) - Image 2
Flat Emitting Pipe (Integral Drip Line) - Image 3
Flat Emitting Pipe (Integral Drip Line) - Image 4

Flat Emitting Pipe (Integral Drip Line)

A flat emitting pipe, also known as a flat emitter drip line or flat drip tape, is a type of irrigation tubing used in drip irrigation systems. It is designed to deliver water directly to the root zone of plants in a controlled and efficient manner.

The flat emitting pipe is typically made of polyethylene material and features evenly spaced emitters along its length. These emitters are small outlets or holes that allow water to drip out in a regulated manner. The spacing between the emitters can vary depending on the specific design and application requirements, but commonly ranges from 6 to 24 inches (15 to 60 cm).

Features and Benefits

1. Manufacture Details

Manufactured from special grade virgin plastic using state of the art technology that guarantees the best results.

Computerized continuous online  quality  test  ensures  reliable  quality  and  consistent performance.

Large cross-sectional, hydraulically designed turbulent flow-path that makes it a clog resistant emitting pipe.

Inbuilt filters prevents physical impurities entering in to the dripper.

Excellent CVm, manufacturer’s coefficient of variation, ensures best field emission uniformity.

2. No Environmental Effects

Best environmental stress crack resistant. Ensures long trouble free life under strigent atmospheric conditions

3. Features

An extruded, seamless tube with drippers permanently fixed inside

Precision laser drilled outlet holes.

Minimum 100 micron filtration recommended.

4. Available Size

Available in four discharge rates of 0.8, 1.3, 1.6, 2.4 and 4.0 lph at 1 kg/cm² pressure as per metric standard.( 0.21, 0.34, 0.42, 0.63 and 1.06 gph at 14.2 psi as per US standard.)

Available in standard dripper spacing 20, 30, 40, 50, 60, 75 and 90 cm. Other spacing and group spacings are available

on demand is available in 12, 16, 17, 19, 20 and 23 mm nominal diameter as per metric standard. Also available in ⅝”, ⅞” and 1⅜

5. Ease of Installation

Connect the flat emitting pipe to the main water supply line. Use fittings that are compatible with the pipe and ensure a secure connection to prevent leaks. Confirm that all connections are tight and properly sealed.

Categories: ,
  • An extruded, seamless tube with drippers permanently fixed inside.
  • Manufactured from special grade virgin plastic using state of- the art technology that guarantees the best results.
  • Computerized continuous online  quality  test  ensures  reliable  quality  and  consistent performance.
  • Large cross-sectional, hydraulically designed turbulent flow path that makes it free water flow.

Available Sizes and Variations

Size Discharge Thickness Dripper Spacing
12mm 2 LPH, 4 LPH 0.45mm, 0.65mm 30cm to 120cm
16mm 2 LPH, 4 LPH 0.2mm, 0.25mm, 0.3mm,
0.4mm, 0.55mm, 0.8mm 		30cm to 120cm
20mm 2 LPH, 4 LPH 0.75mm 30cm to 120cm

Our drip line pipes are manufactured by adhering to stringent quality parameters as laid down by Bureau of Indian Standards IS:13488

Standard dripper spacing

20, 30, 40, 50, 60, 75 and 90 cm
