Disc Filter

HT-136TS(HC) & 136TS

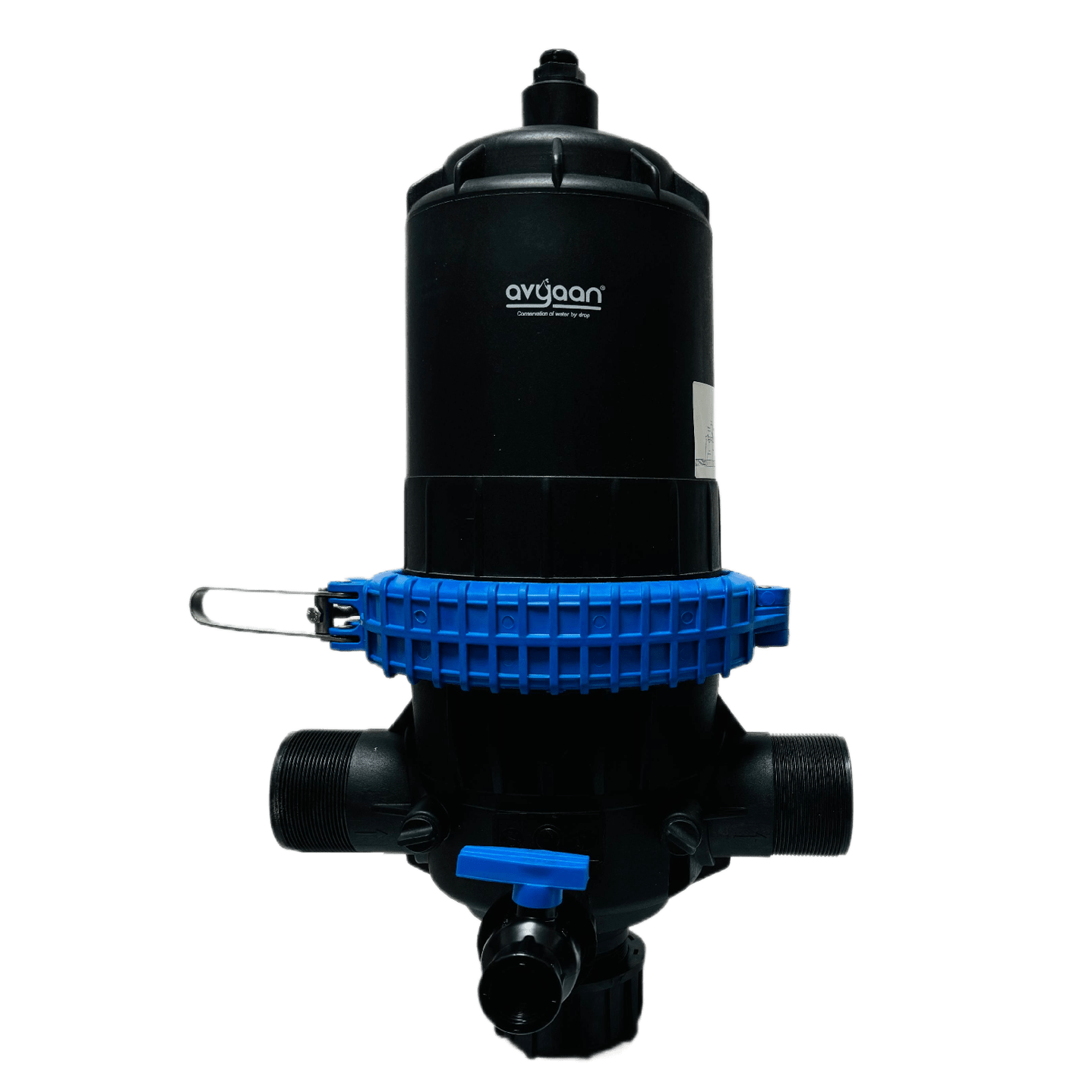

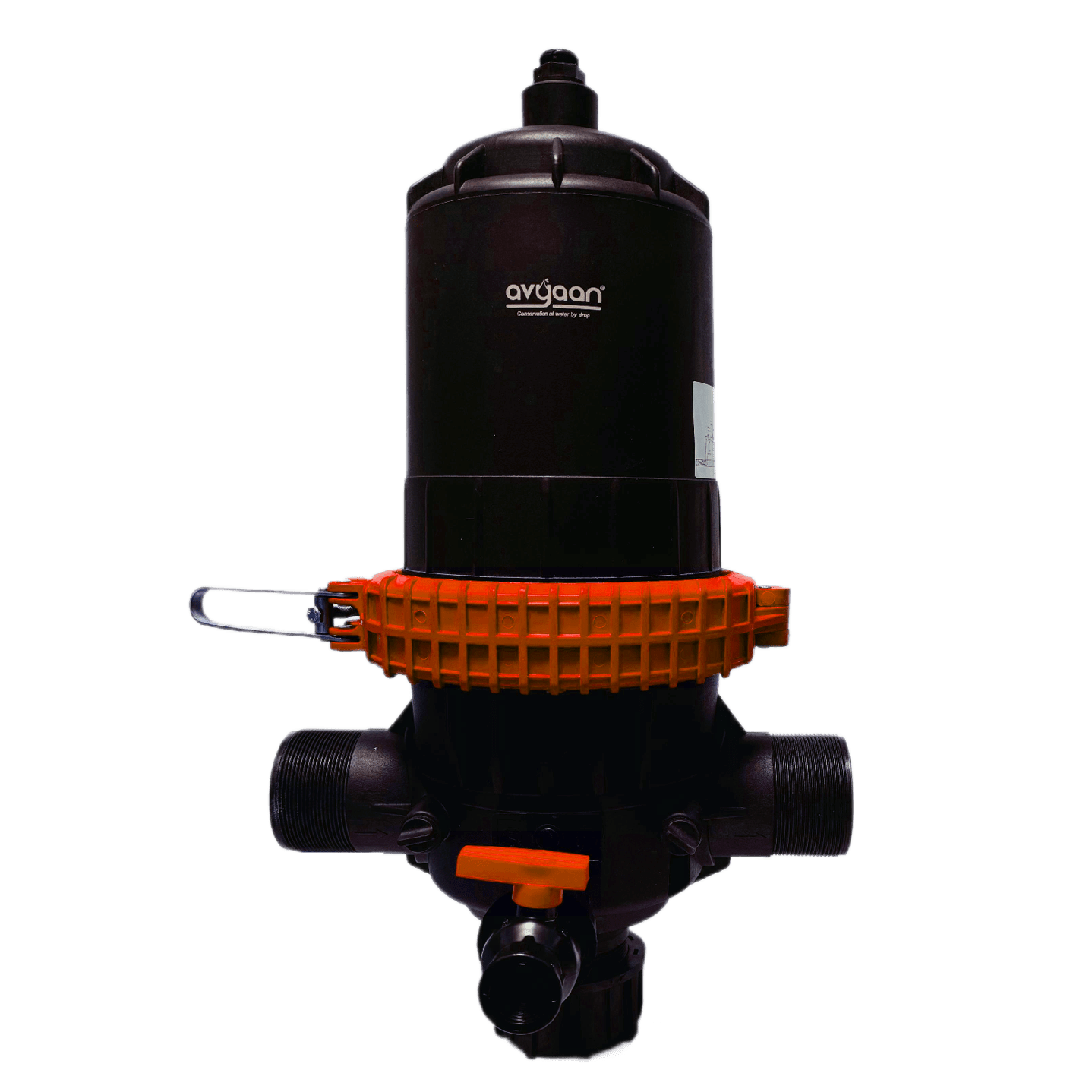

3” T-Type Disc filter (20-40 m³) in which flow passes from outside to inside of disc stake.

A disc filter is a type of filtration system specifically designed for removing debris, sediment and particles from water used in irrigation systems. It helps protect irrigation equipment such as sprinklers, drippers and valves from clogging, ensuring efficient operation and preventing potential damage.

Features and Benefits

1. Manufacture Details

The filters are made from special chemically  bonded polymer which are weather resistant.

Disc filter made with  special Helix system which gives better performance and results.

2. Specifications

Specifications AQ-136TS(HC) & AQ 136TS
US Standard Metric Standard
Inlet / outlet 3 ” NPT 3″ BSP
Range of Flow Rate 155-200 GPM 35-45 m3/hr
Nomianl FLow Rate 175 GPM 40 m3/hr
Filtration Surface Area 185 in2 1193 cm2
Material of Construction Reinforce Polypropylene
Material of Disc Polypropylene Disc
Cartridge Diameter 4.76 Inches 14 mm
Cartridge Length 15.75 Inches 400 mm X 2
Available Mesh 120, 150 mesh 120, 150 mesh

3. Available Size

SL NO Pipe Sizes (mm) Class Of Pile Wall thickness (mm) Pressure rating(Mpa)
1 63 2 2.0-2.4 1.2 to 1.4
2 75 1
2		 2.0-2.4
2.5-2.9		 0.25
0.32

Categories: ,

3” T-Type Disc filter (20-40 m³) in which flow passes from outside to  inside of disc stake. The filters are made from special chemically  bonded polymer which are weather resistant. Disc filter made with  special Helix system which gives better performance and results.

Disc filters play a crucial role in maintaining the efficiency and longevity of irrigation systems by preventing clogging and protecting the downstream components. Regular monitoring, maintenance and periodic replacement of filter elements are essential to ensure effective filtration and maximize system performance.

Available Sizes and Variations

Inlet / Outlet Max. Working Pressure Range of Flow Filtration Surface Area
2” 8 Kg / cm² 20 m³ / hr 492 cm²
2.5” 8 Kg / cm² 30 m³ / hr 492 cm²
3” 8 Kg / cm² 40 m³ / hr 1193 cm²
